Send An EmailThe power cables with cross-linked polyethylene (XLPE) insulation for overhead lines are designed for electrical installations with alternating power networks with nominal voltage Uo/U 0.6/1 kV or in direct power networks with maximum voltage according to land 0.9 кV.
The cables with supporting (bearing) zero conductors are used for building networks in city and urban areas and the self-supporting type cables are for building distribution networks in these areas.

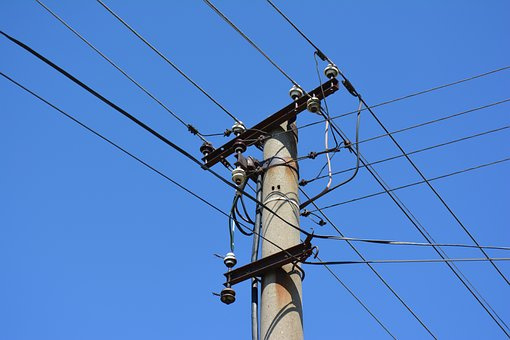

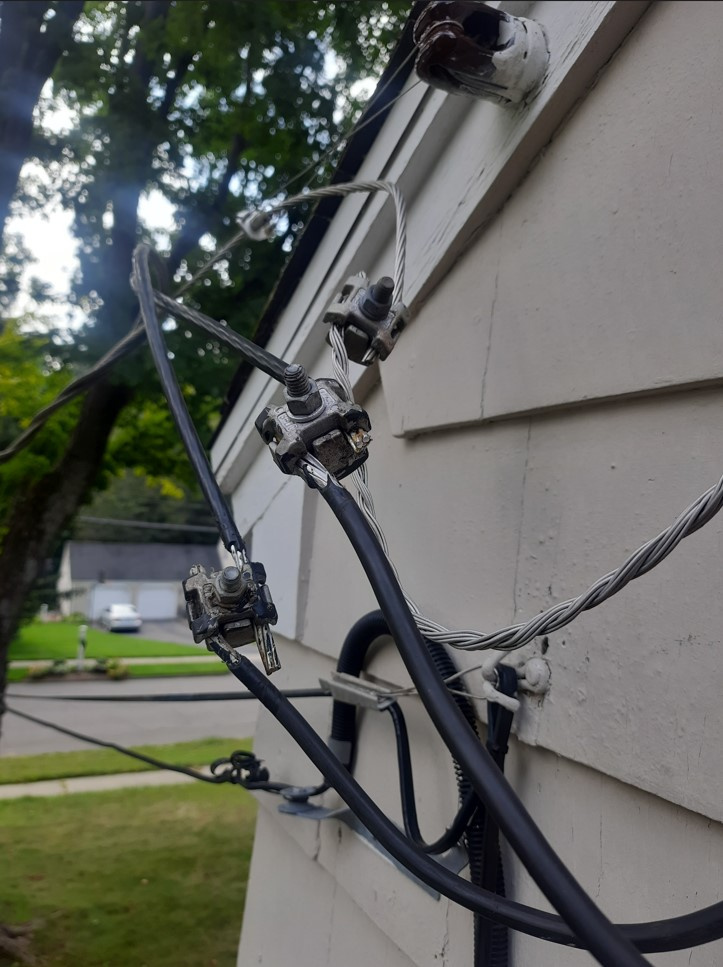

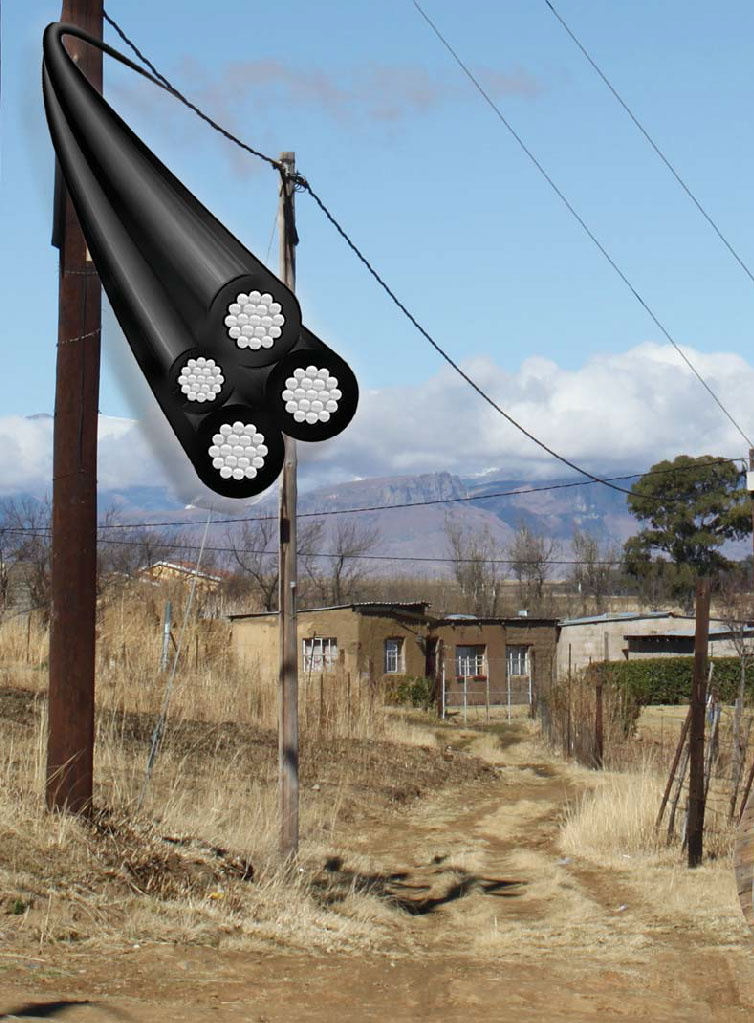

Cables for overhead installations may be used in different types of installations: on free hanging facades; between posts; on fixed facades; trees and poles. Interception of forest areas without the need of clearance and maintenance of openings is allowed.
Cables with supporting zero conductor, the whole bundle is suspended and carried by the supporting conductor, which is made of aluminum compound.
Self-supporting construction, suspension and carrying of the whole bundle is done by the phase insulated conductors.
Bundles can include one or two additional conductors for public lighting and control pair.
Standard:
NF C33-209: Insulated or shielded cables for power systems. Bundle assembled cores for overhead systems of rated voltage 0.6/1 kV
CHARACTERISTICS:
Operating temperature: 80°C
Short-circuit temperature: 130°C
Nominal voltage АС: Uo/U 0.6/1kV
Highest system voltage AC, not more than: 1.2kV
Installation:
The NF C 11-201 standard´s requirements determine the installation procedures for low voltage overhead lines. These cables are NOT ALLOWED to be buried, even in conduits.

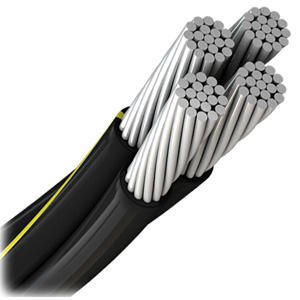

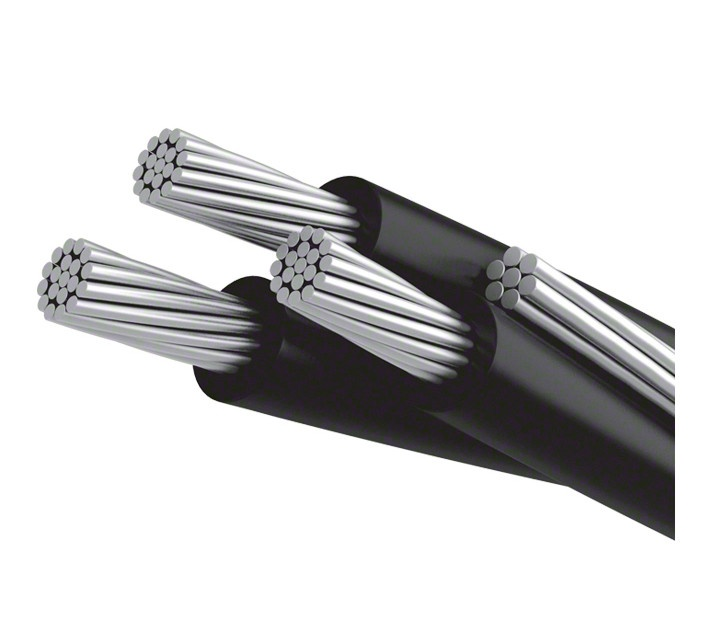

Construction :
Phase Conductor:
Class 2 ircular compacted stranded aluminum conductor
Neutral Conductor:
Class 2 circular compacted stranded aluminum conductor
Insulation:
XLPE (Cross-linked polyethylene) UV Resistant
Core Identification:
Phases by longitudinal ribs (I, II, III)
Neutral core by longitudinal ribs (≤ 50 mm² min.12 ribs; ≥ 50mm² min.16 ribs)
Why Choose Us?

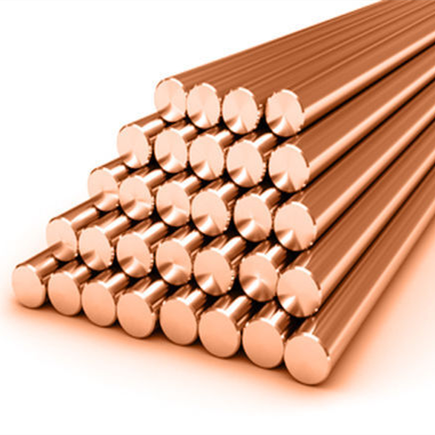

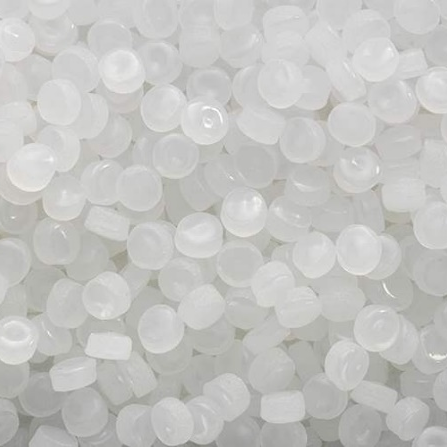

We produce quality cables by using high-end material:
Rich experience team knowing what's your demand:

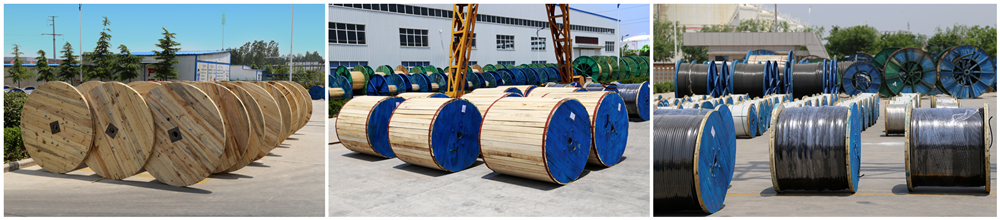

Plant with good facilities and capacity to guarantee on-time delivery:
| Number of Cores x Nominal Cross Section | Overal Diameter | Weight | Maximum Conductor Resistance | Minimum Breaking Load | Current Rating |
| No.x mm² | mm | kg/km | Ω/Km | kN | A |
| 2×10 RM | 12.8 | 93 | 3.08 | 1.5 | 38 |
| 4×10 RM | 15.4 | 183 | 3.08 | 1.5 | 38 |
| 2×16 RM | 14.8 | 129 | 1.91 | 2.3 | 72 |
| 2×16 RN + 2×1.5 RE | 14.8 | 176 | 1.910 / 12.100 | 2.3 | 72 |
| 4×16 RM | 17.8 | 257 | 1.91 | 2.3 | 72 |
| 4×16 RN + 2×1.5 RE | 17.8 | 304 | 1.910 / 12.100 | 2.3 | 72 |
| 2×25 RM | 18 | 202 | 1.2 | 3.8 | 107 |
| 2×25 RM + 2×1.5 RE | 18 | 249 | 1.200 / 12.100 | 3.8 | 107 |
| 4×25 RM | 21.7 | 404 | 1.2 | 3.8 | 107 |
| 4×25 RM + 2×1.5 RE | 21.7 | 451 | 1.200 / 12.100 | 3.8 | 107 |
| 2×35 RM | 20.8 | 269 | 0.868 | 5.2 | 132 |
| 2×35 RM + 2×1.5 RE | 20.8 | 316 | 0.868 / 12.100 | 5.2 | 132 |
| 4×35 RM | 25.1 | 539 | 0.868 | 5.2 | 132 |
| 4×35 RM + 2×1.5 RE | 25.1 | 586 | 0.868 / 12.100 | 5.2 | 132 |
| 2×50 RM | 23.4 | 352 | 0.641 | 7.6 | 165 |
| 2×50 RM + 2×1.5 RE | 23.4 | 399 | 0.641 / 12.100 | 7.6 | 165 |
| 1×54.6 RM + 3×25 RM | 21.7 | 507 | 0.630 / 1.200 | 3.8 | 107 |
| 1×54.6 RM + 3×25 RM + 1×16 RM | 24.3 | 573 | 0.630 / 1.200 / 1.910 | 3.8/2.3 | 107/72 |
| 1×54.6 RM + 3×25 RM + 2×16 RM | 29.7 | 639 | 0.630 / 1.200 / 1.910 | 3.8/2.3 | 107/72 |
| 1×54.6 RM + 3×25 RM + 3×16 RM | 31.1 | 705 | 0.630 / 1.200 / 1.910 | 3.8/2.3 | 107/72 |
| 1×54.6 RM + 3×35 RM | 25.1 | 615 | 0.630 / 0.868 | 5.2 | 132 |
| 1×54.6 RM + 3×35 RM + 1×16 RM | 28.1 | 680 | 0.630 / 0.868 / 1.910 | 5.2/2.3 | 132/72 |
| 1×54.6 RM + 3×35 RM + 2×16 RM | 34.3 | 748 | 0.630 / 0.868 / 1.910 | 5.2/2.3 | 132/72 |
| 1×54.6 RM + 3×35 RM + 3×16 RM | 35.9 | 814 | 0.630 / 0.868 / 1.910 | 5.2/2.3 | 132/72 |
| 1×54.6 RM + 3×35 RM + 1×25 RM | 28.1 | 714 | 0.630 / 0.868 / 1.200 | 5.2/3.8 | 132/107 |
| 1×54.6 RM + 3×50 RM | 28.2 | 741 | 0.630 / 0.641 | 7.6 | 165 |
| 1×54.6 RM + 3×50 RM + 1×16 RM | 31.6 | 806 | 0.630 / 0.641 / 1.910 | 7.6/2.3 | 165/72 |
| 1×54.6 RM + 3×50 RM + 2×16 RM | 38.6 | 875 | 0.630 / 0.641 / 1.910 | 7.6/2.3 | 165/72 |
| 1×54.6 RM + 3×50 RM + 3×16 RM | 40.4 | 940 | 0.630 / 0.641 / 1.910 | 7.6/2.3 | 165/72 |
| 1×54.6 RM + 3×50 RM + 1×25 RM | 31.6 | 841 | 0.630 / 0.641 / 1.200 | 7.6/3.8 | 165/107 |
| 1×54.6 RM + 3×70 RM | 33 | 950 | 0.630 / 0.443 | 10.2 | 205 |
| 1×54.6 RM + 3×70 RM + 1×16 RM | 37 | 1014 | 0.630 / 0.443 / 1.910 | 10.2/2.3 | 205/72 |
| 1×54.6 RM + 3×70 RM + 2×16 RM | 45.2 | 1083 | 0.630 / 0.443 / 1.910 | 10.2/2.3 | 205/72 |
| 1×54.6 RM + 3×70 RM + 3×16 RM | 47.3 | 1148 | 0.630 / 0.443 / 1.910 | 10.2/2.3 | 205/72 |
| 1×54.6 RM + 3×70 RM + 1×25 RM | 37 | 1048 | 0.630 / 0.443 / 1.200 | 10.2/3.8 | 205/107 |
| 1×54.6 RM + 3×70 RM + 2×25 RM | 45.2 | 1150 | 0.630 / 0.443 / 1.200 | 10.2/3.8 | 205/107 |
| 1×54.6 RM + 3×70 RM + 3×25 RM | 47.3 | 1250 | 0.630 / 0.443 / 1.200 | 10.2/3.8 | 205/107 |
| 1×54.6 RM + 3×95 RM | 37.4 | 1176 | 0.630 / 0.320 | 13.5 | 240 |
| 1×54.6 RM + 3×95 RM + 1×16 RM | 41.9 | 1243 | 0.630 / 0.320 / 1.910 | 13.5/2.3 | 240/72 |
