Send An EmailAAAC Aluminium Alloy Conductor a concentrically stranded conductor made from Aluminum-Magnesium-Silicon Alloy 6201-T81 wires.
Applications :
AAAC Aluminium Alloy Conductor is used for primay and secondary overhead power transmission lines having long spans and high resistance to corrosion.
This AAAC Aluminium Alloy Conductor offers excellent electrical characteristics, excellent sag-tension characteristics and superior corrosion resistance to that of ACSR.
Constructions :
Concentric-lay-stranded.

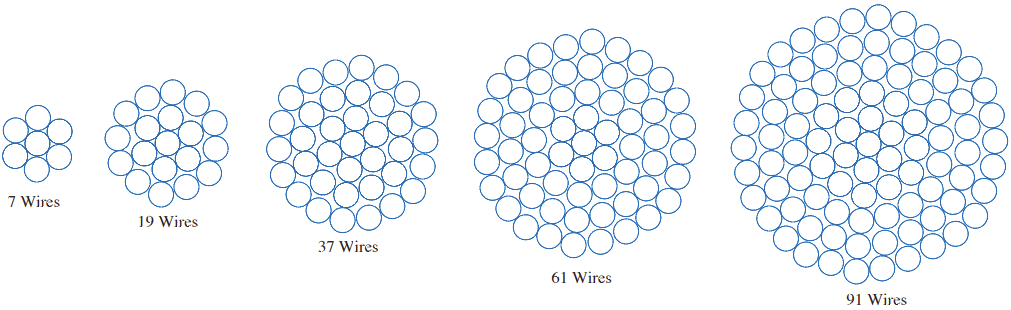

Aluminum Alloy Wires Strands: 7, 19, 37, 61, 91.
Packing Materials :
Wooden drum,steel-wooden drum,steel drum.
IEC 61089 Standard AAAC Aluminium Alloy Conductor Specification
| Code Name | A2 Conductor | A3 Conductor | Max.D.C. Resistance of Conductor at 20℃ | ||||||||
| Number of Wires | Diameter of Wires | Diameter of Conductor | Approx. Weight | Rated Strength | Number of Wires | Diameter of Wires | Diameter of Conductor | Approx. Weight | Rated Strength | ||
| mm² | - | mm | mm | kg/km | daN | - | mm | mm | kg/km | daN | Ω/km |
| 16 | 7 | 1.83 | 5.49 | 50.4 | 5.43 | 50.8 | 6.04 | 50.8 | 6.04 | 1.7896 | |
| 25 | 7 | 2.29 | 6.87 | 78.7 | 8.49 | 1.1453 | 79.5 | 9.44 | 79.5 | 9.44 | 1.1453 |
| 40 | 7 | 2.89 | 8.67 | 125.9 | 13.58 | 0.7158 | 127.1 | 15.1 | 127.1 | 15.1 | 0.7158 |
| 63 | 7 | 3.63 | 10.8 | 198.3 | 21.39 | 0.4545 | 200.2 | 23.06 | 200.2 | 23.06 | 0.4545 |
| 100 | 19 | 2.78 | 13.9 | 316.3 | 33.95 | 0.2877 | 319.3 | 37.76 | 319.3 | 37.76 | 0.2877 |
| 125 | 19 | 3.1 | 15.5 | 395.4 | 42.44 | 0.2302 | 399.2 | 47.2 | 399.2 | 47.2 | 0.2302 |
| 160 | 19 | 3.51 | 17.55 | 506.1 | 54.32 | 0.1798 | 511 | 58.56 | 511 | 58.56 | 0.1798 |
| 200 | 19 | 3.93 | 19.65 | 623.7 | 67.91 | 0.1439 | 638.7 | 73.2 | 638.7 | 73.2 | 0.1439 |
| 250 | 19 | 4.39 | 21.95 | 790.8 | 84.68 | 0.1151 | 798.4 | 91.5 | 798.4 | 91.5 | 0.1151 |
| 315 | 37 | 3.53 | 24.71 | 998.9 | 106.95 | 0.0916 | 1008.4 | 115.29 | 1008.4 | 115.29 | 0.0916 |
| 400 | 37 | 3.98 | 27.86 | 1268.4 | 135.81 | 0.0721 | 1280.5 | 146.4o | 1280.5 | 146.4o | 0.0721 |
| 450 | 37 | 4.22 | 29.54 | 1426.9 | 152.79 | 0.0641 | 1440.5 | 164.7 | 1440.5 | 164.7 | 0.0641 |
| 500 | 37 | 4.45 | 31.15 | 1585.5 | 169.76 | 0.0577 | 1600.6 | 183.oo | 1600.6 | 183.oo | 0.0577 |
| 560 | 61 | 3.67 | 33.03 | 1778.4 | 190.14 | 0.0516 | 1795.3 | 204.95 | 1795.3 | 204.95 | 0.0516 |
| 630 | 61 | 3.89 | 35.01 | 2000.7 | 213.9 | 0.0458 | 2019.8 | 230.58 | 2019.8 | 230.58 | 0.0458 |
| 710 | 61 | 4.13 | 37.17 | 2254.8 | 241.07 | 0.0407 | 2276.2 | 259.86 | 2276.2 | 259.86 | 0.0407 |
| 800 | 61 | 4.38 | 39.42 | 2540.6 | 271.62 | 0.0361 | 2564.8 | 282.8 | 2564.8 | 282.8 | 0.0361 |
| 900 | 91 | 3.81 | 41.91 | 2861.1 | 305.58 | 0.0632 | 2888.3 | 329.4 | 2888.3 | 329.4 | 0.0321 |
| 1000 | 91 | 4.01 | 44.11 | 3179 | 339.53 | 0.0289 | 3209.3 | 366 | 3209.3 | 366 | 0.0289 |
| 1120 | 91 | 4.25 | 46.75 | 3560.5 | 380.27 | 0.0258 | 3594.4 | 409.92 | 3594.4 | 409.92 | 0 0258 |
| 1250 | 91 | 4.49 | 49.39 | 3973.7 | 424.41 | 0 0231 | - | - | - | - | - |
