ASTM/ICEA Standard Low Voltage ABC Aerial Bundled Cable

Specifications:

    Aluminum overhead cables are used outdoors in distribution facilities. They carry the power from the utility lines to the buildings through the weatherhead. Based on this particular function, the cables are also described as service drop cables.

Quick Detail

Parameter Table

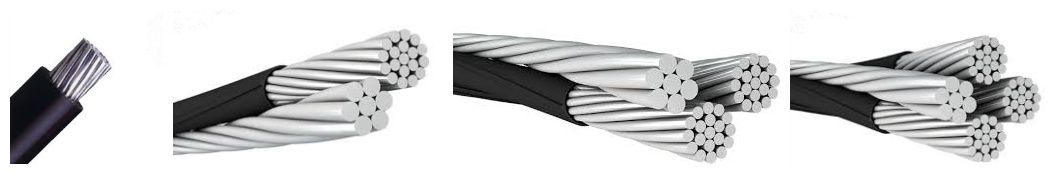

Aluminum Conductor Overhead Duplex, Triplex and Quadruplex Cable:

Aluminum overhead cables are used outdoors in distribution facilities. They carry the power from the utility lines to the buildings through the weatherhead. Based on this particular function, the cables are also described as service drop cables. Aluminum overhead cables include duplex, triplex, and quadruplex varieties. Duplex cables are used in single-phase power lines, whereas quadruplex cables are used in the three-phase power lines. Triplex cables are exclusively used to carry power from the utility lines to customers.
Aluminum conductor cables are made of soft 1350-H19 aluminum series. They are insulated with an extruded thermoplastic polyethylene or cross-linked polyethylene for protection from problematic outdoor environmental conditions. The cables are designed with an operational temperature of up to 75 degrees and a voltage rating of 600 volts.

as
df
sdf

Standard:

ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
ASTM B-231: Concentric lay stranded aluminum 1350 conductors.
ICEA S-76-474: Neutral supported power cable assemblies with weather resistant extruded insulation rated at 600V.

Benefits of Aluminum Overhead Electrical Wires:

Aluminum overhead cables are most often used in overhead power lines because they are lightweight and relatively cheap. Aluminum has high conductivity and low density, which allows these overhead service drop cables to carry current with minimal losses. Aluminum service drop wires are cost-efficient, especially in high-tension lines that stretch for long distances.

Construction:

Covered Line Wire, Duplex, Triplex or Quadruplex Service Drop Available
Phase conductors twisted around a bare aluminum alloy or ACSR neutral conductor.
Conductors: Aluminum alloy 1350-H19 wire.
Insulation: Black thermoset cross-linked polyethylene (XLPE).
Neutral: Bare aluminum alloy or ACSR

AS

Why Choose Us?

We produce quality cables by using high-end material:

Why Choose Us (2)
Why Choose Us (3)
Why Choose Us (1)
Why Choose Us (5)
Why Choose Us (4)
Why Choose Us (6)

Rich experience team knowing what's your demand:

1212

Plant with good facilities and capacity to guarantee on-time delivery:

1213

COVERED LINE WIRE-ALUMINIUM CONDUCTOR

Code Name Size No. of
Wires		 Insulation
Thickness		 Nominal Diameter Rated
Strength		 Nominal Weight Ampacity
Aluminum Total
Bare OD LDPE HDPE XLPE
AWG or KCMIL mm mm mm kgf kg/km kg/km kg/km kg/km A
AAC
Plum 6 7 0.762 4.674 6.198 255 36.61 50.66 51.27 51.27 100
Apricot 4 7 0.762 5.715 7.239 400 58.19 75.57 76.33 76.33 135
Peach 2 7 1.143 7.417 9.703 612 92.56 126.09 127.55 127.55 180
Nectarine 1 7 1.143 8.433 11.481 789 116.67 167.31 169.52 169.52 210
Quince 1/0 7 1.524 9.347 12.395 903 147.48 203.70 206.14 206.14 240
Haw 1/0 19 1.524 9.474 12.522 980 147.48 204.49 206.96 206.96 240
Orange 2/0 7 1.524 11.786 14.834 1139 186.02 257.90 261.02 261.02 280
Ironwood 2/0 19 1.524 10.643 13.691 1211 186.02 250.41 253.21 253.21 280
Fig 3/0 7 1.524 13.259 16.307 1377 233.64 315.53 319.08 319.08 320
Lemon 3/0 19 1.524 11.938 14.986 1501 233.64 306.53 309.70 309.70 320
Olive 4/0 7 1.524 13.259 16.307 1728 296.14 378.04 381.58 381.58 370
Pomegranate 4/0 19 1.524 13.411 16.459 1823 296.14 379.09 382.69 382.69 370
Sassafras 250 19 1.524 14.580 17.628 2043 348.68 439.88 443.84 443.84 420
Mulberry 266.8 19 1.524 14.605 17.653 2182 372.19 463.59 467.55 467.55 460
Basswood 300 19 1.524 15.951 18.999 2404 419.66 520.91 525.30 525.30 478
Annona 336.4 19 1.524 16.916 19.964 2697 469.51 578.04 582.75 582.75 495
Chinquapin 350 19 1.524 17.221 20.269 2790 488.12 598.98 603.79 603.79 525
Moles 397.5 19 2.032 18.390 22.454 3123 555.08 707.29 713.88 713.88 550
Sumac 450 37 2.032 19.609 23.673 3719 628.00 791.79 798.89 798.89 600
Huckleberry 477 37 2.032 20.193 24.257 3810 665.21 834.63 841.98 841.98 610
AAAC
Maple 6 7 0.762 5.029 6.553 503 42.41 59.53 61.01 61.01 78
Hornbeam 4 7 0.762 6.350 7.874 798 67.56 89.29 90.78 92.12 145
Linden 2 7 1.143 8.026 10.312 1270 107.44 147.33 147.33 148.82 190
Oilnut 1/0 7 1.524 8.839 11.887 2023 170.99 238.11 247.03 247.03 250
Waterish 2/0 7 1.524 11.354 14.402 2445 215.63 291.68 302.01 302.01 290
Shellbark 3/0 7 1.524 12.751 15.799 3080 271.59 358.65 370.55 370.55 335
Planetree 4/0 7 1.524 14.300 17.348 3883 342.57 443.47 456.86 456.86 385
ACSR
Walnut 6 6/1 0.762 5.029 6.553 540 36.46 69.94 71.43 71.43 105
Butternut 4 6/1 0.762 6.350 7.874 844 58.04 107.15 170.15 108.64 135
Hickory 4 7/1 0.762 6.528 8.052 1070 58.04 120.54 122.03 123.52 135
Pignut 2 6/1 1.143 8.026 10.312 1293 92.27 175.60 177.09 178.58 180
Beech 2 7/1 1.143 8.357 10.643 1651 92.27 199.41 199.41 202.39 180
Chestnut 1 6/1 1.143 13.970 11.303 1610 116.37 217.27 218.76 220.25 210
Almond 1/0 6/1 1.524 10.109 13.157 1987 146.73 282.75 284.24 287.21 235
Pecan 2/0 6/1 1.524 11.354 14.402 2404 184.98 348.23 349.72 349.72 290
Filbert 3/0 6/1 1.524 12.751 15.799 3003 233.34 430.08 433.05 437.52 305
Buckeye 4/0 6/1 1.524 14.300 17.348 3787 294.21 531.27 535.74 540.20 345
Hackberry 266.8 18/1 1.524 15.469 18.517 3121 372.63 525.32 528.30 534.25 356

Duplex Service Drop

Code
Name		 AWG or KCMIL Bare Neutral Messenger Phase Conductor Weight
kg/km		 Allowable
Ampacities(A)
ACC Rated
Strength
lbs.		 AAC Insul.
Thick.
mm		 XLPE PE
NO. Dia.
mm		 No. Dia.
mm
Pekingese 1*6AWG+1*6AWG 7 1.56 563 1 4.11 1.14 92 85 70
Collie 1*6AWG+1*6AWG 7 1.56 563 7 1.56 1.14 94 85 70
Dachshund 1*4AWG+1*4AWG 7 1.96 881 1 5.19 1.14 139 115 90
Spaniel 1*4AWG+1*4AWG 7 1.96 881 7 1.96 1.14 141 115 90
Doberman 1*2AWG+1*2AWG 7 2.47 1350 7 2.47 1.14 216 150 120
Malemute 1*1/0AWG+1*1/0AWG 7 3.12 1990 19 1.89 1.52 347 205 160
Code
Name		 AWG or KCMIL Bare Neutral Messenger Phase Conductor Weight
kg/km		 Allowable
Ampacities(A)
ACSR Rated
Strength
lbs.		 AAC Insul.
Thick.
mm		 XLPE PE
NO. Dia.
mm		 NO. Dia.
mm		 No. Dia.
mm
Setter 1*6AWG+1*6AWG 1 1.68 6 1.68 1190 1 4.11 1.14 111 85 70
Shepherd 1*6AWG+1*6AWG 1 1.68 6 1.68 1190 7 1.56 1.14 113 85 70
Eskimo 1*4AWG+1*4AWG 1 2.12 6 2.12 1860 1 5.19 1.14 171 115 90
Terrier 1*4AWG+1*4AWG 1 2.12 6 2.12 1860 7 1.96 1.14 173 115 90
Chow 1*2AWG+1*2AWG 1 2.67 6 2.67 2850 7 2.47 1.14 266 150 120
Bull 1*1/OAWG+1*1/OAWG 1 3.37 6 3.37 4380 19 1.89 1.52 427 205 160
Code
Name		 AWG or KCMIL Bare Neutral Messenger Phase Conductor Weight
kg/km		 Allowable
Ampacities(A)
ALLOY Rated
Strength
lbs.		 AAC Insul.
Thick.
mm		 XLPE PE
NO. Dia.
mm		 No. Dia.
mm
Chihuahua 1*6AWG+1*30.58 7 1.68 1110 1 4.11 1.14 98 85 70
Vizsla 1*6AWG+1*30.58 7 1.68 1110 7 1.56 1.14 100 85 70
Harrier 1*4AWG+1*48.69 7 2.12 1760 1 5.19 1.14 149 115 90
Whippet 1*4AWG+1*48.69 7 2.12 1760 7 1.96 1.14 151 115 90
Schnauzer 1*2AWG+1*77.47 7 2.67 2800 7 2.47 1.14 231 150 120
Heeler 1*1/0AWG+1*123.3 7 3.37 4460 19 1.89 1.52 372 205 160

Triplex Service Drop

Code
Name		 AWG or KCMIL Bare Neutral Messenger Phase Conductor Weight
kg/km		 Allowable
Ampacities(A)
ACC Rated
Strength
lbs.		 AAC Insul.
Thick.
mm		 XLPE PE
NO. Dia.
mm		 No. Dia.
mm
Haiotis 2*6AWG+1*6AWG 7 1.56 563 1 4.11 1.14 146 85 70
Patella 2*6AWG+1*6AWG 7 1.56 563 7 1.56 1.14 150 85 70
Fusus 2*4AWG+1*4AWG 7 1.96 881 1 5.19 1.14 219 115 90
Oyster 2*4AWG+1*4AWG 7 1.96 881 7 1.96 1.14 224 115 90
Clam 2*2AWG+1*2AWG 7 2.47 1350 7 2.47 1.14 338 150 120
Murex 2*1/0AWG+1*1/0AWG 7 3.12 1990 7 3.12 1.52 544 205 160
Purpura 2*1/0AWG+1*1/0AWG 7 3.12 1990 19 1.89 1.52 545 205 160
Nassa 2*2/0AWG+1*2/0AWG 7 3.50 2510 7 3.5 1.52 671 235 185
Melita 2*3/0AWG+1*3/0AWG 19 2.39 3310 19 2.39 1.52 830 275 215
Portunus 2*4/0AWG+1*4/0AWG 19 3.25 4020 19 3.25 1.52 1476 315 245
Nannynose 2*336.4+1*336.4 19 3.38 6146 19 3.38 2.03 1649 420 325
Code
Name		 AWG or KCMIL Bare Neutral Messenger Phase Conductor Weight
kg/km		 Allowable
Ampacities(A)
ACSR Rated
Strength
lbs.		 AAC Insul.
Thick.
mm		 XLPE PE
NO. Dia.
mm		 NO. Dia.
mm		 No. Dia.
mm
Paludina 2*6AWG+1*6AWG 1 1.68 6 1.68 1190 1 4.11 1.14 166 85 70
Voluta 2*6AWG+1*6AWG 1 1.68 6 1.68 1190 7 1.56 1.14 170 85 70
Whelk 2*4AWG+1*4AWG 1 2.12 6 2.12 1860 1 5.19 1.14 251 115 90
Periwinkle 2*4AWG+1*4AWG 1 2.12 6 2.12 1860 7 1.96 1.14 255 115 90
Conch 2*2AWG+1*2AWG 1 2.67 6 2.67 2850 7 2.47 1.14 389 150 120
Neritina 2*1/0AWG+1*1/0AWG 1 3.37 6 3.37 4380 7 3.12 1.52 624 205 160
Cenia 2*1/0AWG+1*1/0AWG 1 3.37 6 3.37 4380 19 1.89 1.52 625 205 160
Runcina 2*2/0AWG+1*2/0AWG 1 3.78 6 3.78 5310 7 3.5 1.52 771 235 185
Triton 2*2/0AWG+1*2/0AWG 1 3.78 6 3.78 5310 19 2.13 1.52 772 235 185
Cherrystone 2*3/0AWG+1*3/0AWG 1 4.25 6 4.25 6620 7 3.93 1.52 956 250 200
Mursia 2*3/0AWG+1*3/0AWG 1 4.25 6 4.25 6620 19 2.39 1.52 957 250 200
Razor 2*4/0AWG+1*4/0AWG 1 4.77 6 4.77 8350 7 4.42 1.52 1187 315 245
Zuzara 2*4/0AWG+1*4/0AWG 1 4.77 6 4.77 8350 19 2.68 1.52 1188 315 245
Limpet 2*336.4+1*336.4 1 3.47 18 3.47 8680 19 3.38 2.03 1733 420 325
Scallop 2*4AWG+1*6AWG 1 1.68 6 1.68 1190 1 5.19 1.14 217 115 90
Stromubs 2*4AWG+1*6AWG 1 1.68 6 1.68 1190 7 1.96 1.14 222 115 90
Cockle 2*2AWG+1*4AWG 1 2.12 6 2.12 1860 7 2.47 1.14 335 150 120
Janthina 2*1/0AWG+1*2/0AWG 1 2.67 6 2.67 2850 7 3.12 1.52 539 205 160
Ranella 2*1/0AWG+1*2/0AWG 1 2.67 6 2.67 2850 19 1.89 1.52 540 205 160
Cavolinia 2*2/0AWG+1*1AWG 1 3.00 6 3.00 3550 7 3.50 1.52 665 235 185
Clio 2*2/0AWG+1*1AWG 1 3.00 6 3.00 3550 19 2.13 1.52 666 235 185
Sanddollar 2*3/0AWG+1*1/0AWG 1 3.37 6 3.37 4380 7 3.93 1.52 821 275 215
Aega 2*3/0AWG+1*1/0AWG 1 3.37 6 3.37 4380 19 2.39 1.52 823 275 215
Cuttlefish 2*4/0AWG+1*2/0AWG 1 3.78 6 3.78 5310 7 4.42 1.52 1017 315 245
Cerapus 2*4/0AWG+1*2/0AWG 1 3.78 6 3.78 5310 19 2.68 1.52 1018 315 245
Cowry 2.336.4+1*4/0AWG 1 4.77 6 4.77 8350 19 3.38 2.03 1633 420 325
Code
Name		 AWG or KCMIL Bare Neutral Messenger Phase Conductor Weight
kg/km		 Allowable
Ampacities(A)
Alloy Rated
Strength
lbs.		 AAC Insul.
Thick.
mm		 XLPE PE
NO. Dia.
mm		 No. Dia.
mm
Minex 2*6AWG+1*30.58 7 1.68 1110 1 4.11 1.14 152 85 70
Hippa 2*6AWG+1*30.58 7 1.68 1110 7 1.56 1.14 156 85 70
Prawn 2*4AWG+1*48.69 7 2.12 1760 1 5.19 1.14 229 115 90
Bamacle 2*4AWG+1*48.69 7 2.12 1760 7 1.96 1.14 233 115 90
Shrimp 2*2AWG+1*77.47 7 2.67 2800 7 2.47 1.14 354 150 120
Gammarus 2*1/0AWG+1*123.3 7 3.37 4460 7 3.12 1.52 569 205 160
Leda 2*1/0AWG+1*123.3 7 3.37 4460 19 1.89 1.52 570 205 160
Dungenese 2*2/0AWG+1*155.4 7 3.78 5390 7 3.50 1.52 702 235 185
Cyclops 2*2/0AWG+1*155.4 7 3.78 5390 19 2.13 1.52 703 235 185
Flustra 2*3/0AWG+1*195.7 7 4.25 6790 19 2.39 1.52 869 275 215
Lepas 2*4/0AWG+1*246.9 7 4.77 8560 19 2.68 1.52 1077 315 245
Artemia 2*4AWG+1*30.58 7 1.68 1110 1 5.19 1.14 203 115 90
Crab 2*4AWG+1*30.58 7 1.68 1110 7 1.96 1.14 208 115 90
Solaster 2*2AWG+1*48.69 7 2.12 1760 7 2.47 1.14 313 150 120
Sandcrab 2*1/0AWG+1*77.47 7 2.67 2800 7 3.12 1.52 504 205 160
Echinus 2*1/0AWG+1*77.47 7 2.67 2800 19 1.89 1.52 505 205 160
Crayfish 2*2/0AWG+1*97.65 7 3.00 3530 7 3.50 1.52 621 235 185
Sipho 2*2/0AWG+1*97.65 7 3.00 3530 19 2.13 1.52 622 235 185
Fulgar 2*3/0AWG+1*123.3G 7 2.37 4460 19 2.39 1.52 767 275 215
Arca 2*4/0AWG+1*155.4 7 3.78 5390 19 2.68 1.52 949 315 245

Quadruplex Service Drop

Code
Name		 AWG or KCMIL Bare Neutral Messenger Phase Conductor Weight
kg/km		 Allowable
Ampacities(A)
ACC Rated
Strength
lbs.		 AAC Insul.
Thick.
mm		 XLPE PE
NO. Dia.
mm		 No. Dia.
mm
Clydesdate 3*4AWG+1*4AWG 7 1.96 881 1 5.19 1.14 299 100 80
Pinto 3*4AWG+1*4AWG 7 1.96 881 7 1.96 1.14 306 100 80
Mustang 3*2AWG+1*2AWG 7 2.47 1350 7 2.47 1.14 461 135 105
Criollo 3*1/0AWG+1*1/0AWG 7 3.12 1990 19 1.89 1.52 744 180 140
Percheron 3*2/0AWG+1*2/0AWG 7 3.50 2510 19 2.13 1.52 914 205 160
Hanoverian 3*3/0AWG+1*3/0AWG 19 2.39 3310 19 2.39 1.52 1127 235 185
Oldenburg 3*4/0AWG+1*4/0AWG 19 3.25 4020 19 3.25 1.52 1995 275 210
Lippizaner 3*336.4+1*336.4 19 3.38 6146 19 3.38 2.03 2236 370 280
Code
Name		 AWG or KCMIL Bare Neutral Messenger Phase Conductor Weight
kg/km		 Allowable
Ampacities(A)
ACSR Rated
Strength
lbs.		 AAC Insul.
Thick.
mm		 XLPE PE
NO. Dia.
mm		 NO. Dia.
mm		 No. Dia.
mm
Morochuca 3*6AWG+1*6AWG 1 1.68 6 1.68 1190 1 4.11 1.14 221 75 60
Chola 3*6AWG+1*6AWG 1 1.68 6 1.68 1190 7 1.56 1.14 227 75 60
Morgan 3*4AWG+1*4AWG 1 2.12 6 2.12 1860 1 5.19 1.14 331 100 80
Hackney 3*4AWG+1*4AWG 1 2.12 6 2.12 1860 7 1.96 1.14 338 100 80
Palomino 3*2AWG+1*2AWG 1 2.67 6 2.67 2850 7 2.47 1.14 511 135 105
Costena 3*1/0AWG+1*1/0AWG 1 3.37 6 3.37 4380 19 1.89 1.52 824 180 140
Grullo 3*2/0AWG+1*2/0AWG 1 3.78 6 3.78 5310 19 2.13 1.52 1015 205 160
Suffolk 3*3/0AWG+1*3/0AWG 1 4.25 6 4.25 6620 19 2.39 1.52 1254 235 185
Appaloosa 3*4/0AWG+1*4/0AWG 1 4.77 6 4.77 8350 19 2.68 1.52 1554 275 210
Bronco 3*336.4+1*336.4 1 3.47 18 3.47 8680 19 3.38 2.03 2321 370 280
Gelding 3*336.4+1*4/0AWG 1 4.77 6 4.77 8350 19 3.38 2.03 2221 370 280
Code
Name		 AWG or KCMIL Bare Neutral Messenger Phase Conductor Weight
kg/km		 Allowable
Ampacities(A)
Alloy Rated
Strength
lbs.		 AAC Insul.
Thick.
mm		 XLPE PE
NO. Dia.
mm		 No. Dia.
mm
Bay 3*6AWG+1*30.58 7 1.68 1110 1 4.11 1.14 207 75 60
French Coach 3*6AWG+1*30.58 7 1.68 1110 7 1.56 1.14 213 75 60
Geman Coach 3*4AWG+1*48.69 7 2.12 1760 1 5.19 1.14 309 100 80
Arabian 2*4AWG+1*48.69 7 2.12 1760 7 1.96 1.14 316 100 80
Belgian 3*2AWG+1*77.47 7 2.67 2800 7 2.47 1.14 476 135 105
Shetland 3*1/0AWG+1*123.3 7 3.37 4460 19 1.89 1.52 768 180 140
Thoroughbred 3*2/0AWG+1*155.4 7 3.78 5390 19 2.13 1.52 945 205 160
Trotter 3*3/0AWG+1*195.7 7 4.25 6790 19 2.39 1.52 1166 235 185
Walking 3*4/0AWG+1*246.9 7 4.77 8560 19 2.68 1.52 1442 275 210

    • More Product

    IEC60502 Standard Low Voltage ABC Aerial Bundled Cable

    IEC60502 Standard Low Voltage ABC Aerial Bundled Cable
    ASTM Standard MV ABC Aerial Bundled Cable

    ASTM Standard MV ABC Aerial Bundled Cable
    AS/NZS 3599 Standard MV ABC Aerial Bundled Cable

    AS/NZS 3599 Standard MV ABC Aerial Bundled Cable
    NFC33-209 Standard Low Voltage ABC Aerial Bundled Cable

    NFC33-209 Standard Low Voltage ABC Aerial Bundled Cable
    SANS1418 Standard Low Voltage ABC Aerial Bundled Cable

    SANS1418 Standard Low Voltage ABC Aerial Bundled Cable
    AS/NZS 3560.1 Standard Low Voltage ABC Aerial Bundled Cable

    AS/NZS 3560.1 Standard Low Voltage ABC Aerial Bundled Cable
    case_prev
    case_next
    Hit enter to search or ESC to close
