Send An EmailAerial bundled cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight.
Standard :
AS/NZS 3560.1--- Electric cables - Cross-linked polyethylene insulated - Aerial bundled - For working voltages up to and including 0.6/1(1.2)kV - Aluminum conductors
Advantage:
Easy for erection and Stringing
Practically no tree-trimming required
Less maintenance

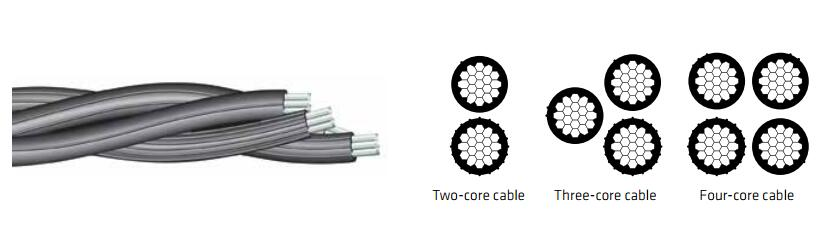

Construction :
Conductor (for either phase, neutral or street light): aluminum 1350 wires are compacted circular stranded (RM). Insulation: XLPE. Assembly: The cores shall be laid up with a left-hand lay.
Why Choose Us?
We produce quality cables by using high-end material:
Rich experience team knowing what's your demand:
Plant with good facilities and capacity to guarantee on-time delivery:
|
Number of Cores x Nominal Cross Section |
Min. Breaking Load of Conductor Strand | Current Rating in The Air | Outer Diameter |
Total Weight |
|
mm² |
kN |
A |
mm |
kg/km |
|
2×16 rm |
4.4 |
78 |
15.0 |
140 |
|
2×25 rm |
7.0 |
105 |
17.6 |
210 |
|
2×35 rm |
9.8 |
125 |
19.6 |
270 |
|
2×50 rm |
11.4 |
150 |
22.8 |
370 |
|
2×95 rm |
15.3 |
230 |
30.6 |
680 |
|
3×25 rm |
8.8 |
97 |
19.0 |
310 |
|
3×35 rm |
9.8 |
120 |
21.1 |
410 |
|
3×50 rm |
11.4 |
140 |
24.6 |
550 |
|
4×16 rm |
8.8 |
74 |
18.1 |
290 |
|
4×25 rm |
14.0 |
97 |
21.2 |
410 |
|
4×35 rm |
19.6 |
120 |
23.7 |
550 |
|
4×50 rm |
28.0 |
140 |
27.5 |
740 |
|
4×70 rm |
39.2 |
175 |
31.9 |
1000 |
|
4×95 rm |
53.2 |
215 |
36.9 |
1370 |
|
4×120 rm |
67.2 |
250 |
40.6 |
1690 |
|
4×150 rm |
84.0 |
280 |
43.9 |
2020 |
